Gasoline mini dumper
Tracked

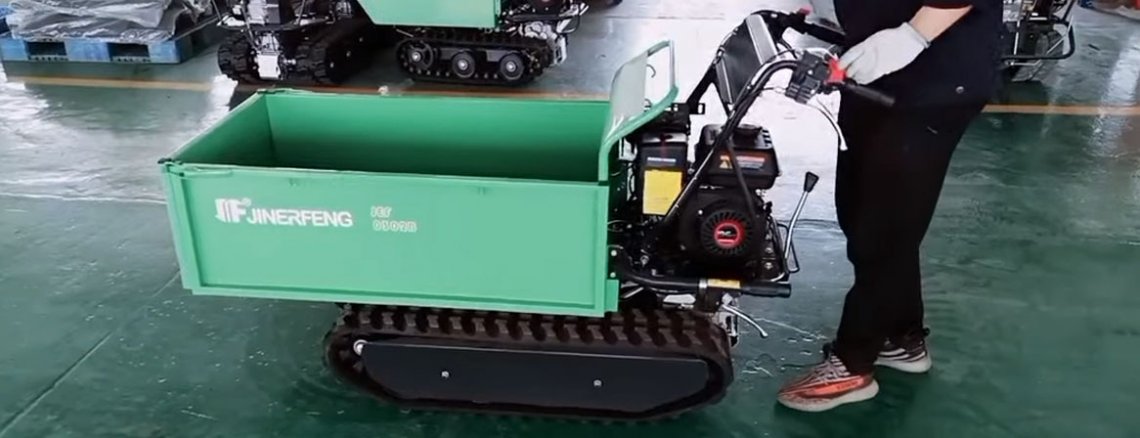

The 0301B track dumper was designed and built to enable the user to do his job comfortably and without much effort. It offers reliable support in many areas of daily life; it is ideal to use in construction, agriculture, gardening and any sector in which the user needs assistance
The crawler dumper is self-propelled and the skip can be tipped. A hydraulic unit and a hydraulic cylinder have been built onto the machine to facilitate this. Our mini-dumper sets itself apart from the competition with this function! The lifting and lowering process is complete within a matter of seconds.
0301C tracked wheel barrow with 9 Hp and 270 CC Loncin engine. This transporter has a capacity of 500 kg, a hydraulic tipping and is equipped with 3 forward and 1 reverse gears. It offers high performance in all working conditions. Guaranteed safety thanks to the self-braking system.

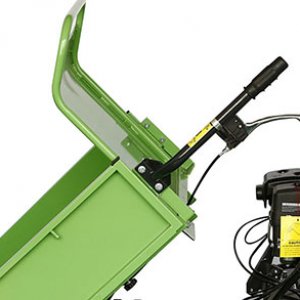

The bucket is fitted with a mechanical tilting device for easy emptying. When the emptying lever is activated, the bucket automatically dumps its contents and is then reset by hand.

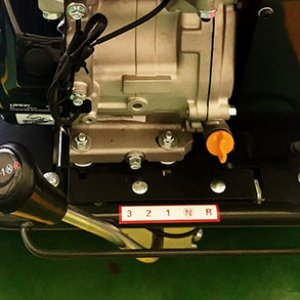

Large gearbox , reliable thanks to the choice of the first quality materials that guarantee a correct functioning and a protection from stones and splinters that could damage the mechanical parts.

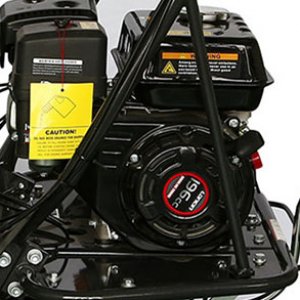

Powerful 4-stroke petrol engine 6.5HP, equipped with OHV overhead valves that offer more power, operates in a quieter way and support the environment thanks to the emissions being much more efficient.

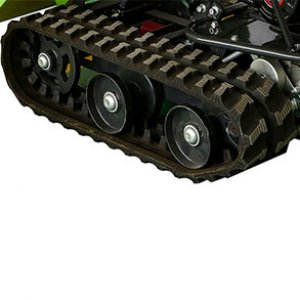

Reinforced rubber tracks with a special profile that guarantee a sliding guide on any type of surface; thanks to the pointed shape of the rear part of the track you will be able to climb on steps and edges without any difficulty.
| MOTOR | CHARACTERISTICS | CAPACITY |
LONCIN 270CC 9HP | OVERALL DIMENSIONS 1770 x 770 x 1020 mm | MAX LOAD (FLAT / SLOPE) 500 KG / 375 KG |
TYPE OF ENGINE OHV SINGLE CYLINDER 4 STROKE GASOLINE. | BUCKET DIMENSIONS 1100*700*350mm | ADMISSIBLE SLOPE 30% |
TRANSMISSION 3F+1R | DUMP SYSTEM HYDRAULIC | UNLOADED WEIGHT 280KG |
STARTING SYSTEM RECOIL/ELECTRIC (OPTION) | SECURITY SYSTEM WITH LEVER AND AUTOMATIC BRAKE | |
TYPE OF TRANSMISSION MECHANICAL | TYPE OF DIRECTION MECHANICAL WITH LEVERS | |
WORKING SPEED MAX 6 km / h |
