Gasoline mini dumper
Tracked

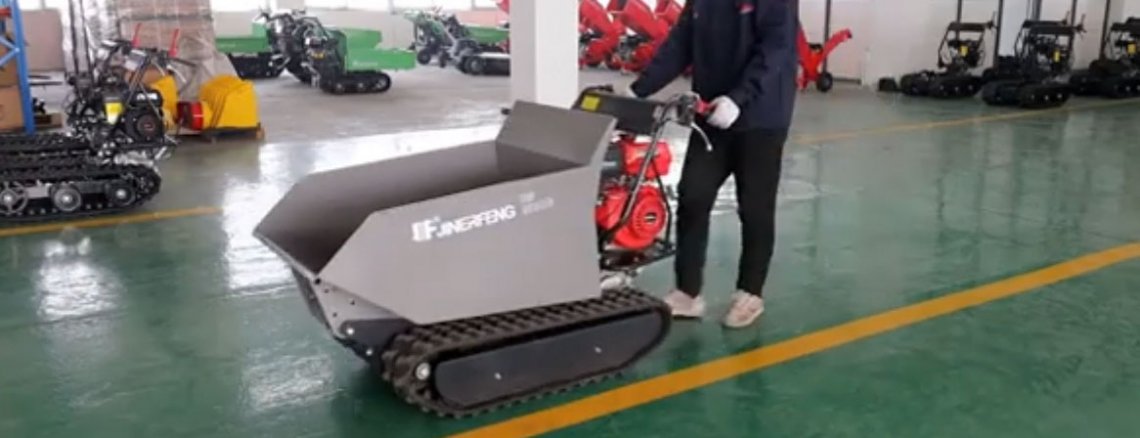

The 0301C track dumper was designed and built to enable the user to do his job comfortably and without much effort. It offers reliable support in many areas of daily life; it is ideal to use in construction, agriculture, gardening and any sector in which the user needs assistance.
The crawler dumper is self-propelled and the skip can be tipped. A hydraulic unit and a hydraulic cylinder have been built onto the machine to facilitate this. Our mini-dumper sets itself apart from the competition with this function! The lifting and lowering process is complete within a matter of seconds.
0301C tracked wheel barrow with 9 Hp and 270 CC Loncin engine. This transporter has a capacity of 500 kg, a hydraulic tipping and is equipped with 3 forward and 1 reverse gears. It offers high performance in all working conditions. Guaranteed safety thanks to the self-braking system.

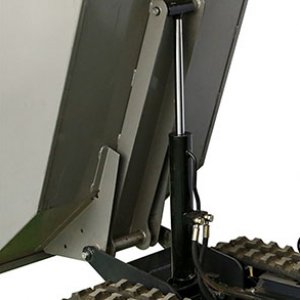

The bucket is fitted with a hydraulic unit and a hydraulic cylinder have been built onto the machine to facilitate this.

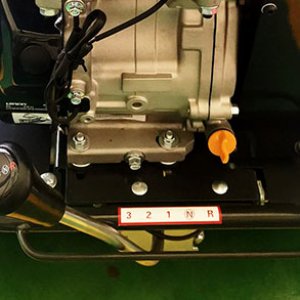

Large gearbox , reliable thanks to the choice of the first quality materials that guarantee a correct functioning and a protection from stones and splinters that could damage the mechanical parts.

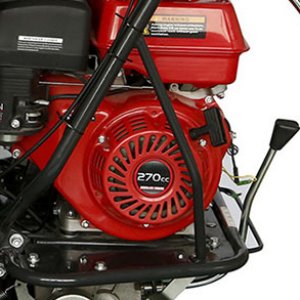

Powerful 4-stroke petrol engine 270cc 9HP, equipped with OHV overhead valves that offer more power, operates in a quieter way and support the environment thanks to the emissions being much more efficient.
Dumper made of high quality steel, reinforced with tubular crosspieces that allow safe transport and suitable for loads of all kinds with a maximum load of 500 kg ; thanks to the compact and resistant frame structure, the noise and vibration level are considerably reduced.
| MOTOR | CHARACTERISTICS | CAPACITY |
LONCIN 270CC 9HP | OVERALL DIMENSIONS 1770 x 770 x 1020 mm | MAX LOAD (FLAT / SLOPE) 500 KG / 375 KG |
TYPE OF ENGINE OHV SINGLE CYLINDER 4 STROKE GASOLINE. | BUCKET DIMENSIONS 1100*700*350mm | ADMISSIBLE SLOPE 30% |
TRANSMISSION 3F+1R | DUMP SYSTEM HYDRAULIC | UNLOADED WEIGHT 280KG |
STARTING SYSTEM RECOIL/ELECTRIC (OPTION) | SECURITY SYSTEM WITH LEVER AND AUTOMATIC BRAKE | |
TYPE OF TRANSMISSION MECHANICAL | TYPE OF DIRECTION MECHANICAL WITH LEVERS | |
WORKING SPEED MAX 6 km / h |
