Gasoline mini dumper
tracked

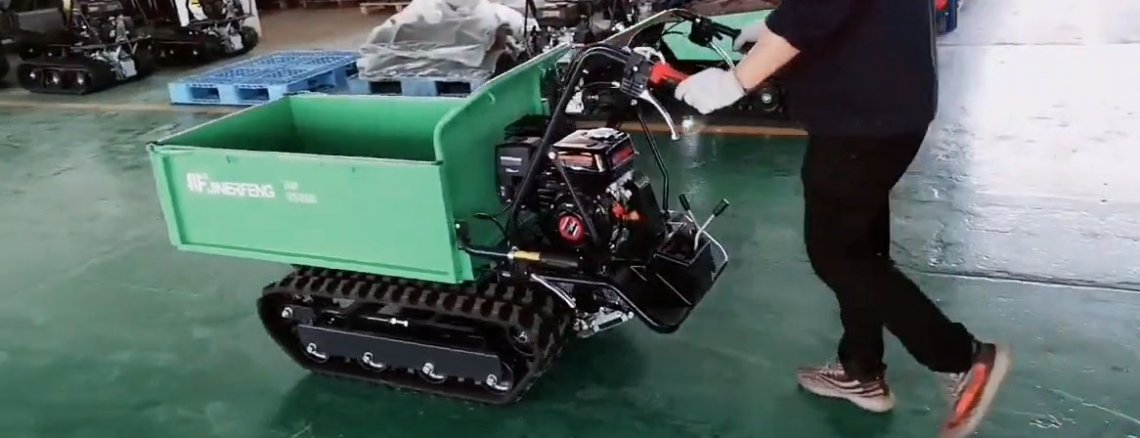

The 0302A is a versatile machine designed to facilitate the transport of loads or bulky objects. Up to 300kg, this transporter will simplify your life by transporting your heavy or bulky loads whatever your field: construction, agriculture, maintenance of green spaces ...
The 0302A mini thermal dumper is a real daily good helper. Sand, Wood, Rubble… transport your load while limiting your efforts and concentrate your energy on more important tasks!
0302A tracked wheel barrow with 6.5 Hp and 196 CC Loncin engine. This transporter has a capacity of 300 kg, a gas spring for tipping and is equipped with 6 forward and 2 reverse gears. It offers high performance in all working conditions. Guaranteed safety thanks to the self-braking system.

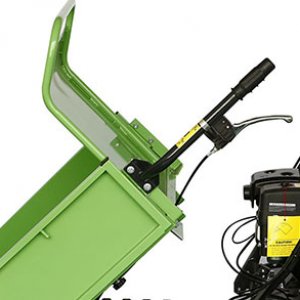

The bucket is fitted with a mechanical tilting device for easy emptying. When the emptying lever is activated, the bucket automatically dumps its contents and is then reset by hand.
Large gearbox , reliable thanks to the choice of the first quality materials that guarantee a correct functioning and a protection from stones and splinters that could damage the mechanical parts.

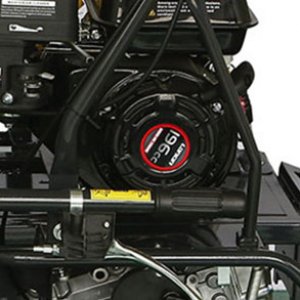

Powerful 4-stroke petrol engine 196cc 6.5HP, equipped with OHV overhead valves that offer more power, operates in a quieter way and support the environment thanks to the emissions being much more efficient.

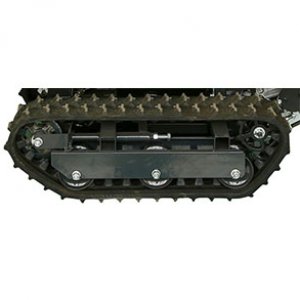

Reinforced rubber tracks with a special profile that guarantee a sliding guide on any type of surface; thanks to the pointed shape of the rear part of the track you will be able to climb on steps and edges without any difficulty.
| MOTOR | CHARACTERISTICS | CAPACITY |
LONCIN 196CC 6.5HP | OVERALL DIMENSIONS 1595 x 700 x 940 mm | MAX LOAD (FLAT / SLOPE) 300 KG / 200 KG |
TYPE OF ENGINE OHV SINGLE CYLINDER 4 STROKE GASOLINE. | BUCKET DIMENSIONS 900*600*210mm | ADMISSIBLE SLOPE 30% |
TRANSMISSION 6F+2R | DUMP SYSTEM MANUAL | UNLOADED WEIGHT 225 KG |
STARTING SYSTEM RECOIL/ELECTRIC (OPTION) | SECURITY SYSTEM WITH LEVER AND AUTOMATIC BRAKE | |
TYPE OF TRANSMISSION MECHANICAL | TYPE OF DIRECTION MECHANICAL WITH LEVERS | |
FORWARD SPEED max.8 km/h | ||
REVERSE SPEED max.5 km/h |
