Gasoline mini dumper
Tracked

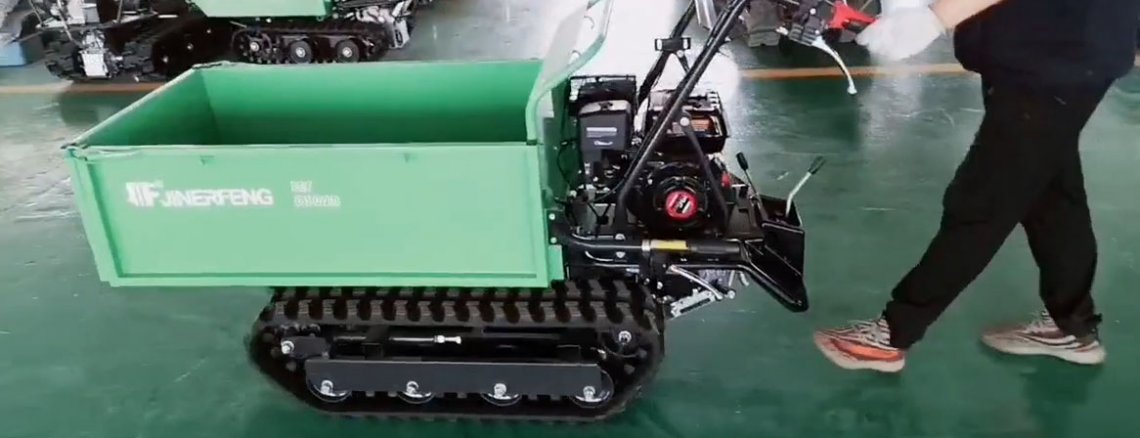

The 0302B track dumper was designed and built to enable the user to do his job comfortably and without much effort. It offers reliable support in many areas of daily life; it is ideal to use in construction, agriculture, gardening and any sector in which the user needs assistance.

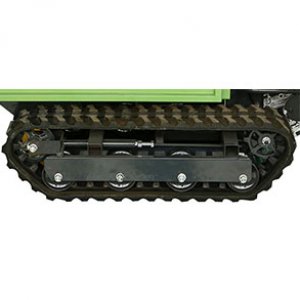

0302B track dumper is a flexible powerhouse for a variety of applications. Thanks to the powerful a lifting capacity of 500 kg, it is easy for you to handle heavy loads. It is a tool for valuable service and the chains allows it to be used on rough terrain!
0302B tracked wheel barrow with 6.5 Hp and 196 CC Loncin engine. This transporter has a capacity of 500 kg, a gas spring for tipping and is equipped with 6 forward and 2 reverse gears. It offers high performance in all working conditions. Guaranteed safety thanks to the self-braking system.

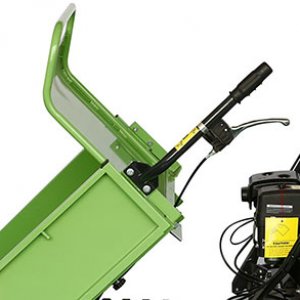

The bucket is fitted with a mechanical tilting device for easy emptying. When the emptying lever is activated, the bucket automatically dumps its contents and is then reset by hand.

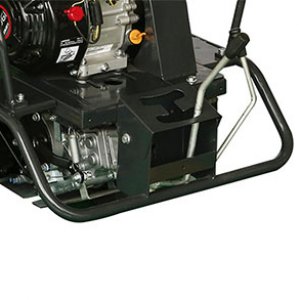

Large gearbox , reliable thanks to the choice of the first quality materials that guarantee a correct functioning and a protection from stones and splinters that could damage the mechanical parts.

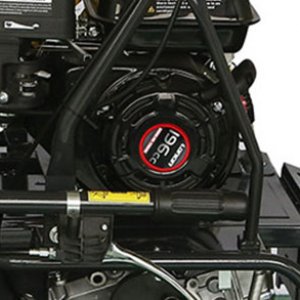

Powerful 4-stroke petrol engine 196cc 6.5HP, equipped with OHV overhead valves that offer more power, operates in a quieter way and support the environment thanks to the emissions being much more efficient.
Dumper made of high quality steel, reinforced with tubular crosspieces that allow safe transport and suitable for loads of all kinds with a maximum load of 500 kg ; thanks to the compact and resistant frame structure, the noise and vibration level are considerably reduced.
| MOTOR | CHARACTERISTICS | CAPACITY |
LONCIN 196CC 6.5HP | OVERALL DIMENSIONS 2600X780X1220 mm | MAX LOAD (FLAT / SLOPE) 500 KG / 400 KG |
TYPE OF ENGINE OHV SINGLE CYLINDER 4 STROKE GASOLINE. | BUCKET DIMENSIONS 1100*700*350mm | ADMISSIBLE SLOPE 30% |
TRANSMISSION 6F+2R | DUMP SYSTEM MANUAL | UNLOADED WEIGHT 265KG |
STARTING SYSTEM RECOIL/ELECTRIC (OPTION) | SECURITY SYSTEM WITH LEVER AND AUTOMATIC BRAKE | |
TYPE OF TRANSMISSION MECHANICAL | TYPE OF DIRECTION MECHANICAL WITH LEVERS | |
WORKING SPEED FORWARDS /BACKWARDS, MAX 3.6 / 1.2 km / h |
