Gasoline mini dumper

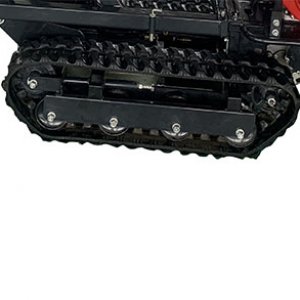

Tracked
The 0302CS track dumper offers the same reliable, easy starting Loncin engine and simple drive system but with a dumper style tipping butt that is more suited for shifting sand, soils etc. Tipping is fully mechanized by the hydraulic ram. The machine is still only 700mm wide and great to get in those hard to reach areas..
0302CS has an innovative big gearbox making a huge difference in usability and efficiency. The chassis has been further improved increasing ground clearance and off-road ability.

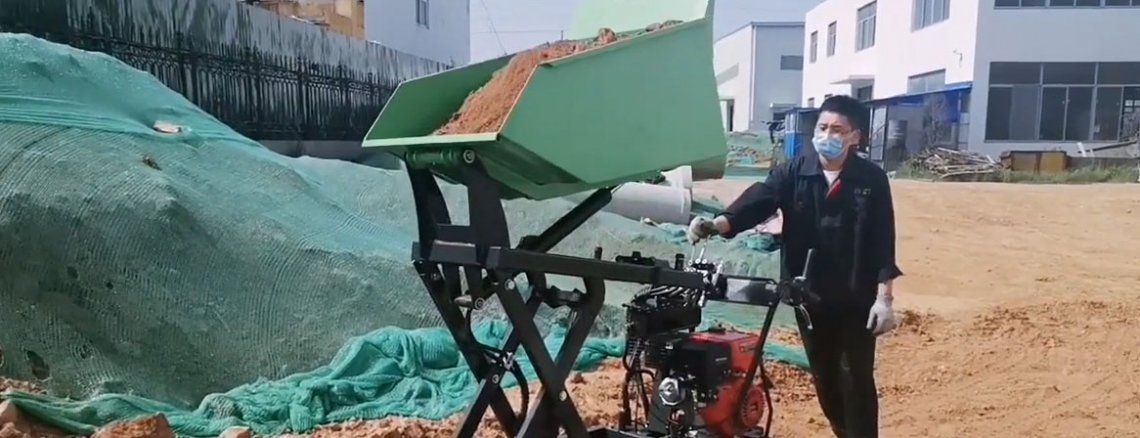

It is fitted with the High tip devise idel for loading skips and pickups.The machines come with a free stand plate fitted! it can be removed to increase ground clearance
0302CS tracked wheel barrow with 9 Hp and 270 CC Loncin engine. This transporter has a capacity of 500 kg, with hydraulic lifting and turning tip and is equipped with 6 forward and 2 reverse gears. It offers high performance in all working conditions. Guaranteed safety thanks to the self-braking system.

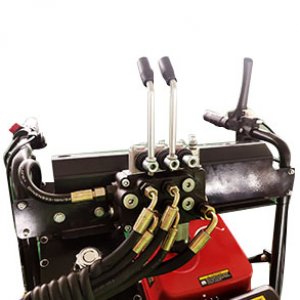

All hydraulic Mechanical overturning and lifting , activated by the ergonomic release lever,more convenient to operate.
Large gearbox , reliable thanks to the choice of the first quality materials that guarantee a correct functioning and a protection from stones and splinters that could damage the mechanical parts.

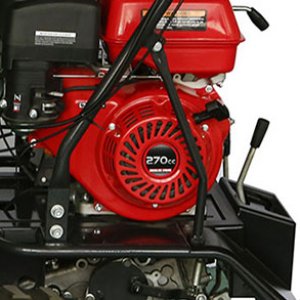

Powerful 4-stroke petrol engine 270cc 9HP, equipped with OHV overhead valves that offer more power, operates in a quieter way and support the environment thanks to the emissions being much more efficient.

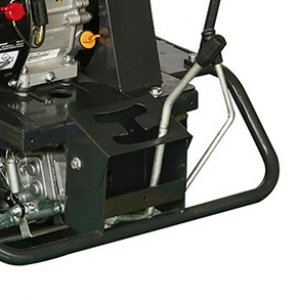

Dumper made of high quality steel, reinforced with tubular crosspieces that allow safe transport and suitable for loads of all kinds with a maximum load of 500 kg ; thanks to the compact and resistant frame structure, the noise and vibration level are considerably reduced.
| MOTOR | CHARACTERISTICS | CAPACITY |
LONCIN 270CC 9HP | OVERALL DIMENSIONS 1850x750x1110 mm | MAX LOAD (FLAT / SLOPE) 500 KG / 375 KG |
TYPE OF ENGINE OHV SINGLE CYLINDER 4 STROKE GASOLINE. | BUCKET DIMENSIONS 1000x670x445mm | ADMISSIBLE SLOPE 30% |
POWER 6.0 kW | DUMP SYSTEM HYDRAULIC | UNLOADED WEIGHT 349KG |
TRANSMISSION 6F+2R | TIPPING HEIGHT/INCLINATION 1406 mm / 90 ° | |
STARTING SYSTEM RECOIL/ELECTRIC (OPTION) | TILTING CONTAINER(LxWxH) 950 x 700 x 450 mm | |
TYPE OF TRANSMISSION MECHANICAL | GROUND CLEARANCE 120 mm | |
WORKING SPEED MAX 8 km / h | SECURITY SYSTEM WITH LEVER AND AUTOMATIC BRAKE | |
TYPE OF DIRECTION MECHANICAL WITH LEVERS |
