Gasoline mini dumper
Tracked

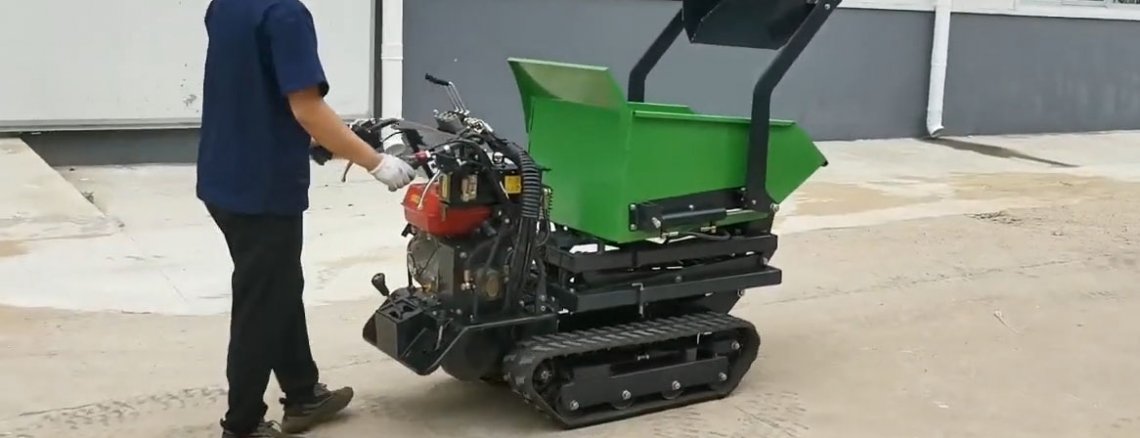

The 0302CSZ track dumper offers the same reliable, easy starting Loncin engine and simple drive system but with a dumper style tipping butt that is more suited for shifting sand, soils etc. Tipping is fully mechanized by the hydraulic ram,it can be used in any difficult terrian.
0302CSZ with an innovative big gearbox,also have high-tip function and self-loading making a huge difference in usability and efficiency. The chassis has been further improved increasing ground clearance and off-road ability.
It is fitted with the High tip devise idel for loading skips and pickups.The machines come with a free stand plate fitted! it can be removed to increase ground clearance
0302CS tracked wheel barrow with 9 Hp and 270 CC Loncin engine. This transporter has a capacity of 500 kg, with hydraulic lifting and turning tip and is equipped with 6 forward and 2 reverse gears. It offers high performance in all working conditions. the foldable footboard also proves to be extremely helpful and comfortable on longer distances.

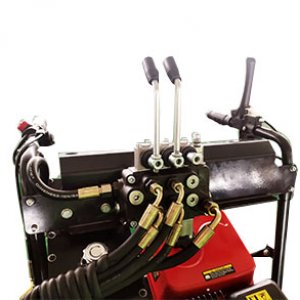

All hydraulic Mechanical overturning and lifting , activated by the ergonomic release lever,more convenient to operate.

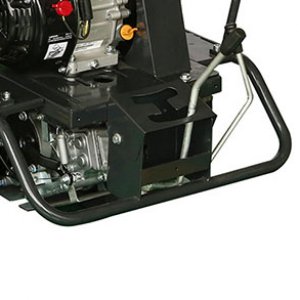

Large gearbox , reliable thanks to the choice of the first quality materials that guarantee a correct functioning and a protection from stones and splinters that could damage the mechanical parts.

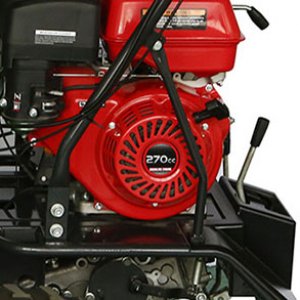

Powerful 4-stroke petrol engine 270cc 9HP, equipped with OHV overhead valves that offer more power, operates in a quieter way and support the environment thanks to the emissions being much more efficient.

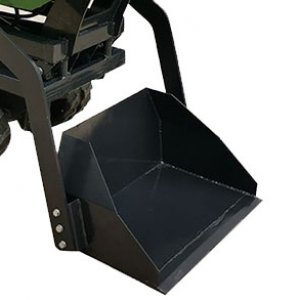

Loading shovel with hydraulic tip control,more convenient and high effcient.
| MOTOR | CHARACTERISTICS | CAPACITY |
| LONCIN 270CC 9HP | OVERALL DIMENSION S1850x750x1110 mm | MAX LOAD (FLAT / SLOPE) 500 KG / 375 KG |
TYPE OF ENGINE OHV SINGLE CYLINDER 4 STROKE GASOLINE. | BUCKET DIMENSIONS 1000x670x445mm | ADMISSIBLE SLOPE 30% |
POWER 6.0 kW | DUMP SYSTEM HYDRAULIC | |
OPERATING SPEED 3,000 rpm | TIPPING HEIGHT/INCLINATION 1406 mm / 90 ° | |
TRANSMISSION 6F+2R | TILTING CONTAINER(LxWxH) 950 x 700 x 450 mm | |
STARTING SYSTEM RECOIL/ELECTRIC (OPTION) | GROUND CLEARANCE 120 mm | |
TYPE OF TRANSMISSION MECHANICAL | SECURITY SYSTEM WITH LEVER AND AUTOMATIC BRAKE | |
WORKING SPEED MAX 8 km / h | TYPE OF DIRECTION MECHANICAL WITH LEVERS |
