Hydraulic mini dumper
Tracked
As the perfect helper for all transport work, the fully hydraulic 0610S models provide valuable services in many industries for a wide variety of activities
Hydraulic mini dumper
Tracked
As the perfect helper for all transport work, the fully hydraulic 0610S models provide valuable services in many industries for a wide variety of activities
The 0610S model new and improved track barrow is a professional quality track barrow..The machine is fully hydraulic and robustly made. This machine was made with durability and ease of use in mind. It is propelled by a top of the range hydraulic pump and has a handy stand plate. This machine will offer years of great service
0610S with Loncin 270cc 9hp engine,The massive steel construction and the powerful double hydraulic pump in combination with the simple, intuitive control and the operating platform make the models the ideal helper.
The tipping angle of the bucket exceeds 90°, which makes unloading much easier.
A hydraulic unit and a hydraulic cylinder have been built onto the machine to facilitate this.the lifting and lowering process is complete within a matter of seconds.

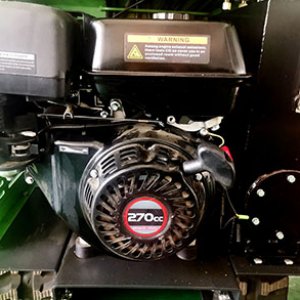

Powerful 4-stroke petrol engine 270cc 9HP, equipped with OHV overhead valves that offer more power, operates in a quieter way and support the environment thanks to the emissions being much more efficient.

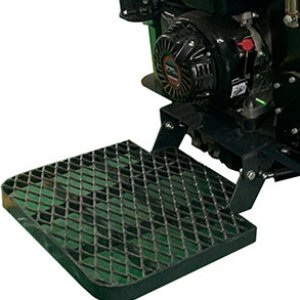

With floded platform,user can choose as required.
Dumper made of high quality steel, reinforced with tubular crosspieces that allow safe transport and suitable for loads of all kinds with a maximum load of 500 kg ; thanks to the compact and resistant frame structure, the noise and vibration level are considerably reduced.
| MOTOR | CHARACTERISTICS | CAPACITY |
LONCIN 270CC 9HP | BUCKET DIMENSIONS 1000x670x445mm | LOAD CAPACITY MAX.500KG,AT 30% GRADIENT 375KG |
TYPE OF ENGINE OHV SINGLE CYLINDER 4 STROKE GASOLINE. | BUCKET UP DIMENSION 1900x720x1380 mm | ADMISSIBLE SLOPE 30% |
TRANSMISSION HYDRAULIC | PACKAGE DIMENSION 1700x800x1360 mm | UNLOADED WEIGHT 380KG |
STARTING SYSTEM RECOIL/ELECTRIC (OPTION) | ||
DRIVE HYDRAULIC | ||
FORWARD SPEED 2.5 km/h-5 km/h | ||
REVERSE SPEED 1.25km/h-3km/h |
