Hydraulic mini dumper
Tracked
As the perfect helper for all transport work, the fully hydraulic 0610SA models provide valuable services in many industries for a wide variety of activities
Hydraulic mini dumper
Tracked
As the perfect helper for all transport work, the fully hydraulic 0610SA models provide valuable services in many industries for a wide variety of activities

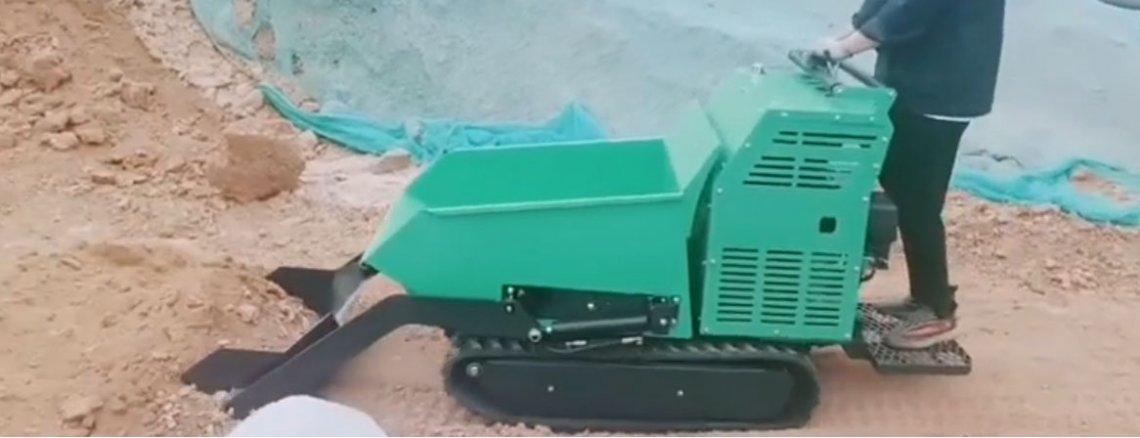

The 0610SA model new and improved track barrow is a professional quality track barrow with self loading shovel. The machine is fully hydraulic and robustly made. This machine was made with durability and ease of use in mind. It is propelled by a top of the range hydraulic pump and has a handy stand plate. This machine will offer years of great service.
0610SA with Loncin 270cc 9hp engine,it can easily transports loads of up to 500 kg.

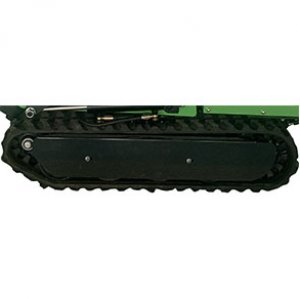

With good grip thanks to rubber chains on slippery, smooth and muddy surfaces.The massive steel construction and the powerful double hydraulic pump in combination with the simple, intuitive control and the operating platform make the models the ideal helper.
The tipping angle of the bucket exceeds 90°, which makes unloading much easier.

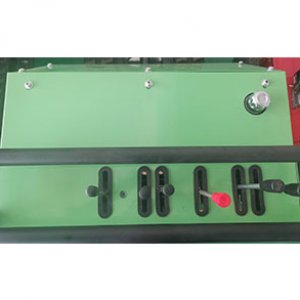

All operation controller is in frount of the users,whcih is very easy and convenient.

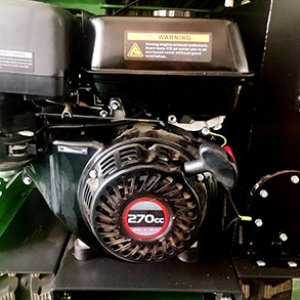

Powerful 4-stroke petrol engine 270cc 9HP, equipped with OHV overhead valves that offer more power, operates in a quieter way and support the environment thanks to the emissions being much more efficient.

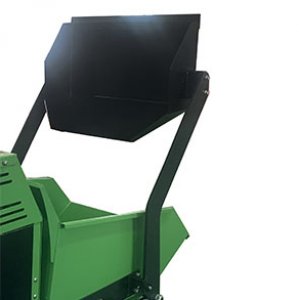

A hydraulic unit and a hydraulic cylinder have been built onto the machine to facilitate this.the lifting and loading process is complete within a matter of seconds.
Dumper made of high quality steel, reinforced with tubular crosspieces that allow safe transport and suitable for loads of all kinds with a maximum load of 500 kg ; thanks to the compact and resistant frame structure, the noise and vibration level are considerably reduced.
| MOTOR | CHARACTERISTICS | CAPACITY |
LONCIN 270CC 9HP | BUCKET DIMENSION S1000x670x445mm | LOAD CAPACITY MAX.500KG,AT 30% GRADIENT 375KG |
TYPE OF ENGINE OHV SINGLE CYLINDER 4 STROKE GASOLINE. | BUCKET UP DIMENSION 1900x720x1380 mm | ADMISSIBLE SLOPE 30% |
TRANSMISSION HYDRAULIC | PACKAGE DIMENSION 1830*1120*1430 mm | UNLOADED WEIGHT 390KG |
STARTING SYSTEM RECOIL/ELECTRIC (OPTION) | PACKAGE WEIGHT 450KG | |
DRIVE HYDRAULIC | ||
FORWARD SPEED 2.5 km/h-5 km/h | ||
REVERSE SPEED 1.25km/h-3km/h |
