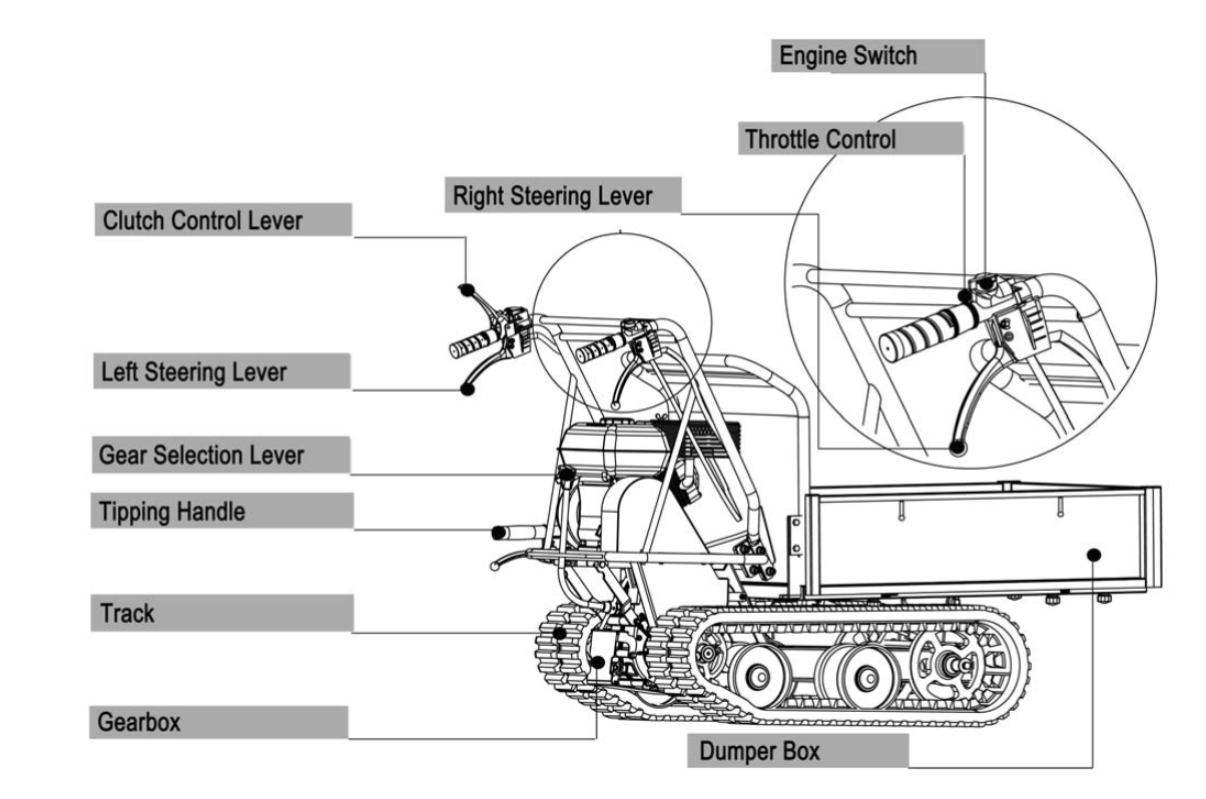

Understanding the structure of the machine allows us to use it better,let’s begin:
Engine switch
The engine switch enables and disables the ignition system.
The engine switch must be in the ON position for the engine to run.
Turning the engine switch to the OFF position stops the engine.
Clutch control lever
Squeeze the control lever, clutch engaged. Release the lever, clutch disengaged.
Throttle control
It controls engine speed. Put the throttle control on low speed (L) or high speed (H) or an intermediary position between L and H to increase or decrease the speed of engin
Left steering lever
Operate the lever to turn left.
Right steering lever
Operate the lever to turn right.
Gear selection lever
It controls forward or reverse movements of the machine.
Tipping handle
It controls tipping of the dumper box. Pull the tipping handle up to raise the dumper box. Pull the tipping handle down to its original position,dumper box will be lowered and locked automatically. To check whether the dump box is locked securely, try to lift it without pulling up the tipping
handle.
